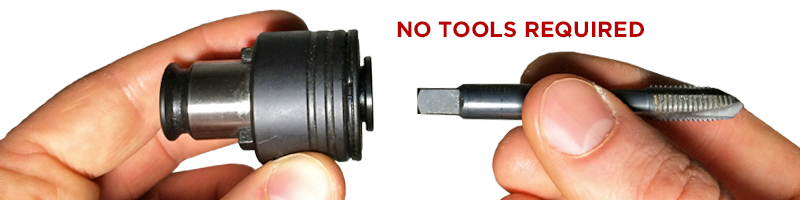

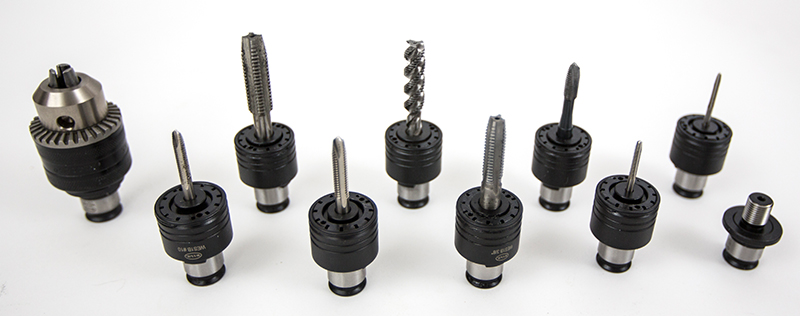

TAP SIZE | ||||||||||||||
ETA Part No. | American Inch Taps | US Shank Metric Taps | Bilz Designation | Shank Diameter | Drive Square | |||||||||
TLA-006 | #0 thru #6 | M1.6 thru M3.5* | WES1B #0 - #6 | 0.141 | 0.110 | |||||||||
TLA-008 | #8 | M4 | WES1B #8 | 0.168 | 0.131 | |||||||||
TLA-010 | #10 | M4.5, M5* | WES1B #10 | 0.194 | 0.152 | |||||||||
TLA-012 | #12 | WES1B #12 | 0.220 | 0.165 | ||||||||||
TLA-250 | 1/4 | M6, M6.3 | WES1B 1/4 | 0.255 | 0.191 | |||||||||
TLA-312 | 5/16 | M7, M8 | WES1B 5/16 | 0.318 | 0.238 | |||||||||
TLA-375 | 3/8 | M10 | WES1B 3/8 | 0.381 | 0.286 | |||||||||
TLA-438 | 7/16 | WES1B 7/16 | 0.323 | 0.242 | ||||||||||
TLA-500 | 1/2 | M12, M12.5 | WES1B 1/2 | 0.367 | 0.275 | |||||||||
TLA-562 | 9/16 | M14 | WES1B 9/16 | 0.429 | 0.332 | |||||||||
TLA-1PSS | 1/8 npt | WES1B 1/8-SS | 0.3125 | 0.234 | ||||||||||
TLA-1PLS | 1/8 npt | WES1B 1/8-LS | 0.437 | 0.328 | ||||||||||
TCA-520 | Chuck Adapter Only | WE1 A36 1/2-20 | 1/2 - 20 Threads | |||||||||||
TCA-50C | Adapter with Drill Chuck Included | Jacobs | 1/2" Capacity Keyed Chuck |
|
||||||||||
TAP SIZE | ||||||||||
ETA Part No. | American Inch Taps | US Shank Metric Taps | Bilz Designation | Shank Diameter | Drive Square | |||||
TPD-006 | #0 thru #6 | M1.6 thru M3.5* | WES1B #0 - #6 | 0.141 | 0.110 | |||||
TPD-008 | #8 | M4* | WES1B #8 | 0.168 | 0.131 | |||||
TPD-010 | #10 | M4.5, M5* | WES1B #10 | 0.194 | 0.152 | |||||
TPD-012 | #12 | WES1B #12 | 0.220 | 0.165 | ||||||
TPD-250 | 1/4 | M6, M6.3 | WES1B 1/4 | 0.255 | 0.191 | |||||
TPD-312 | 5/16 | M7, M8 | WES1B 5/16 | 0.318 | 0.238 | |||||
TPD-375 | 3/8 | M10 | WES1B 3/8 | 0.381 | 0.286 | |||||
TPD-438 | 7/16 | WES1B 7/16 | 0.323 | 0.242 | ||||||
TPD-500 | 1/2 | M12, M12.5 | WES1B 1/2 | 0.367 | 0.275 | |||||
TPD-562 | 9/16 | M14 | WES1B 9/16 | 0.429 | 0.332 | |||||
TPD-625 | 5/8 | M16 | WEK 5/8 | 0.480 | 0.360 | |||||
TPD-1PSS | 1/8 npt | WES1B 1/8-SS | 0.3125 | 0.234 | ||||||
TPD-1PLS | 1/8 npt | WES1B 1/8-LS | 0.437 | 0.328 |
SECTION 3 Size 1 Extended Range Tap Adapters ( LIGHT DUTY USE ONLY ) |
||||||
ETA Part No. | American Inch Taps | Drive Type | Designation | Shank Diameter | Drive Square | |
TXL-625 | 5/8 | Torque Clutch | WESK1B 5/8 | 0.480 | 0.360 | |
TXD-688 | 11/16 | Direct Drive | 51-011 | 0.542 | 0.406 | |
TXD-750 | 3/4 | Direct Drive | 51-012 | 0.590 | 0.442 | |
TXD-813 | 13/16 | Direct Drive | 51-013 | 0.652 | 0.489 | |
TXD-875 | 7/8 | Direct Drive | 51-014 | 0.697 | 0.523 | |
TXD-2P | 1/4 npt | Direct Drive | 51-2040 | 0.563 | 0.421 | |
TXD-3P | 3/8 npt | Direct Drive | 51-2060 | 0.700 | 0.531 | |
TXD-4P | 1/2 npt | Direct Drive | 51-2080 | 0.688 | 0.515 |
|
||||||||||
ETA Part No. | Tap Size | Bilz Part Number | Bilz Designation | Shank Diameter | Drive Square | |||||
TLA-M3 | M3 | 21201017 | WES1B M3 | 3.5MM | 2.7MM | |||||
TLA-M4 | M4 | 21201030 | WES1B M4 | 4.5MM | 3.4MM | |||||
TLA-M5 | M5 | 21201054 | WES1B M5 | 6.00MM | 4.9MM | |||||
TLA-M6 | M6 | 21201054 | WES1B M6 | 6.0MM | 4.9MM | |||||
TLA-M8A | M8 | 21201086 | WES1B M8 | 8.00MM | 6.2MM | |||||
TLA-M10A | M10 | 21201115 | WES1B M10 | 10.0MM | 8.0MM | |||||
TLA-M8B | M8 | 21201054 | WES1B M8 | 6.0MM | 4.9MM | |||||
TLA-M10B | M10 | 21201068 | WES1B M10 | 7.0MM | 5.5MM | |||||
TLA-M12 | M12 | 21201099 | WES1B M12 | 9.0MM | 7.0MM | |||||
TLA-M14 | M14 | 21201123 | WES1B M14 | 11.0MM | 9.0MM |
|
||||||||||
ETA Part No. | Tap Size | Bilz Part Number | Bilz Designation | Shank Diameter | Drive Square | |||||
TDP-M3 | M3 | 21201017 | WE1 M3 | 3.5MM | 2.7MM | |||||
TDP-M4 | M4 | 21201030 | WE1 M4 | 4.5MM | 3.4MM | |||||
TDP-M5 | M5 | 21201054 | WE1 M5 | 6.00MM | 4.9MM | |||||
TDP-M6 | M6 | 21201054 | WE1 M6 | 6.0MM | 4.9MM | |||||
TDP-M8A | M8 | 21201086 | WE1 M8 | 8.00MM | 6.2MM | |||||
TDP-M10A | M10 | 21201115 | WE1 M10 | 10.0MM | 8.0MM | |||||
TDP-M8B | M8 | 21201054 | WE1 M8 | 6.0MM | 4.9MM | |||||
TDP-M10B | M10 | 21201068 | WE1 M10 | 7.0MM | 5.5MM | |||||
TDP-M12 | M12 | 21201099 | WE1 M12 | 9.0MM | 7.0MM | |||||
TDP-M14 | M14 | 21201123 | WE1 M14 | 11.0MM | 9.0MM |
